APPROX Gallons = 22
Tank Material =
✅ Award-Winning Product Design
✅ Industry Leading Warranty
🛍️ Join 10,000+ Satisfied Customers

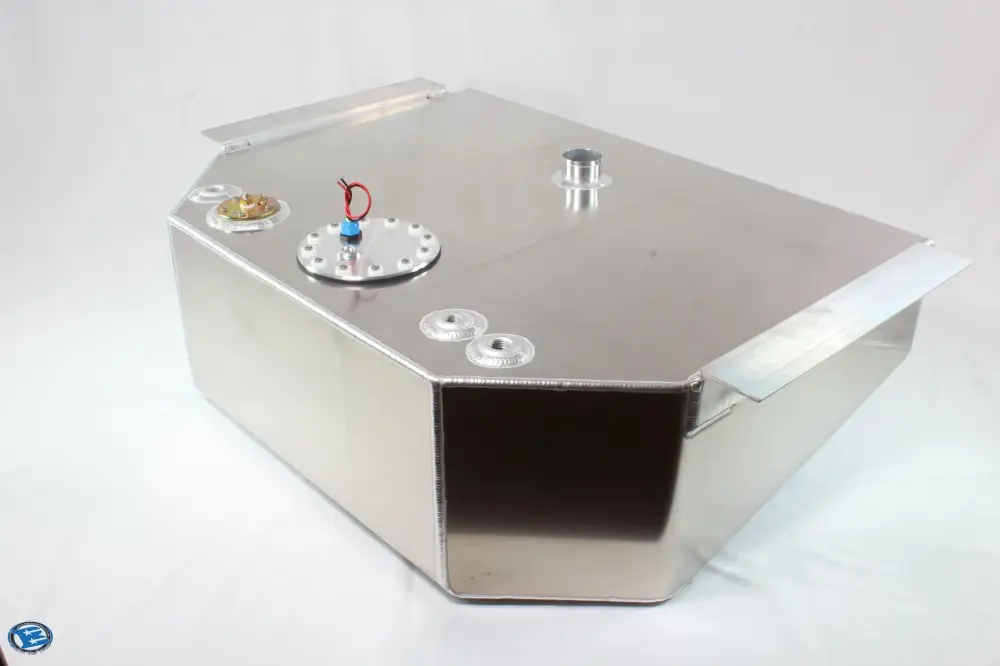

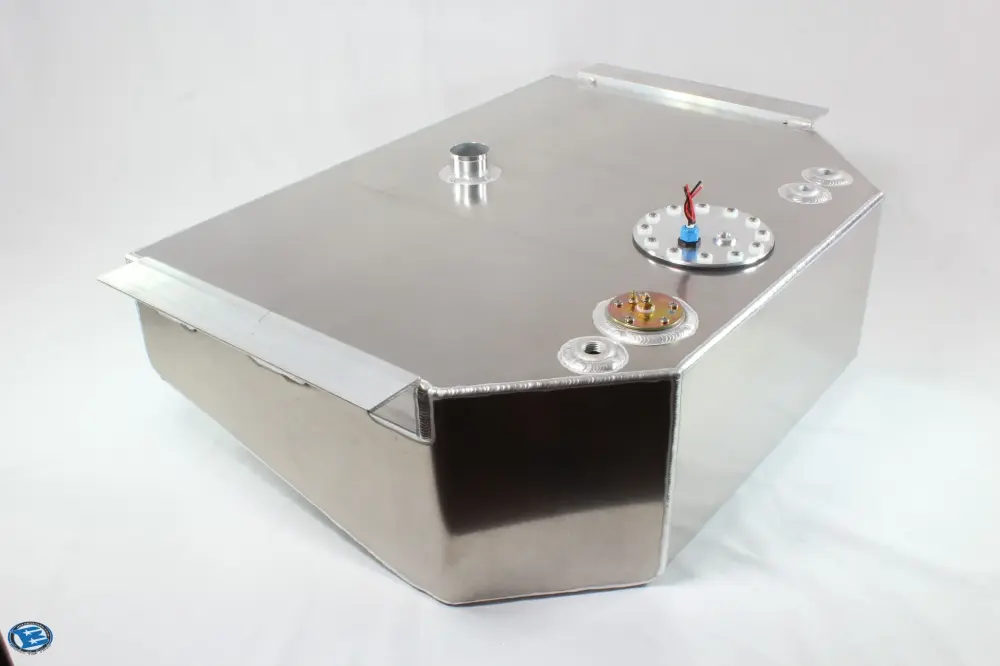

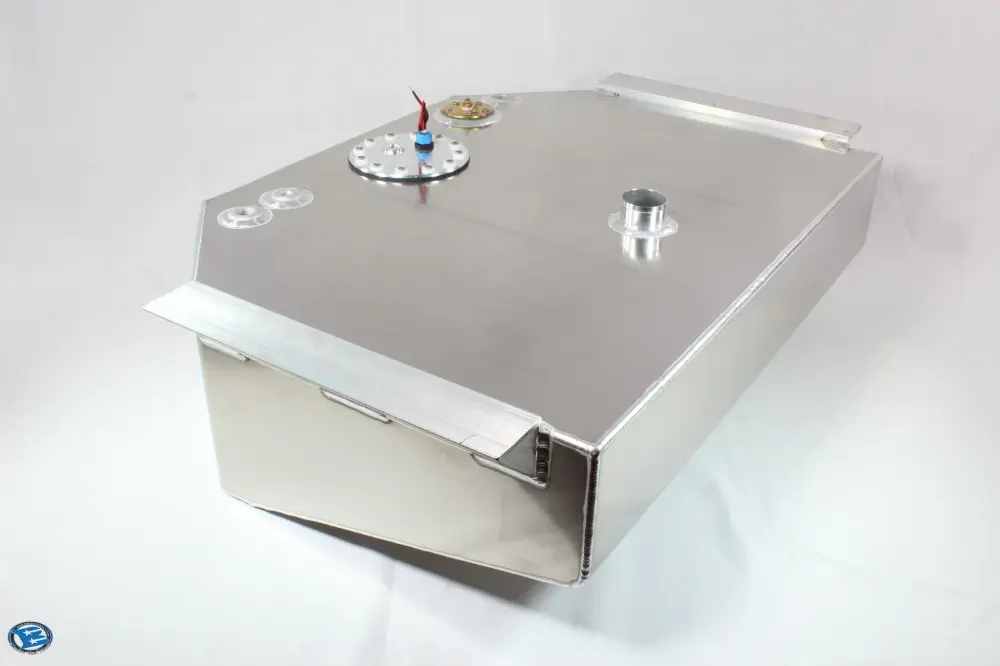

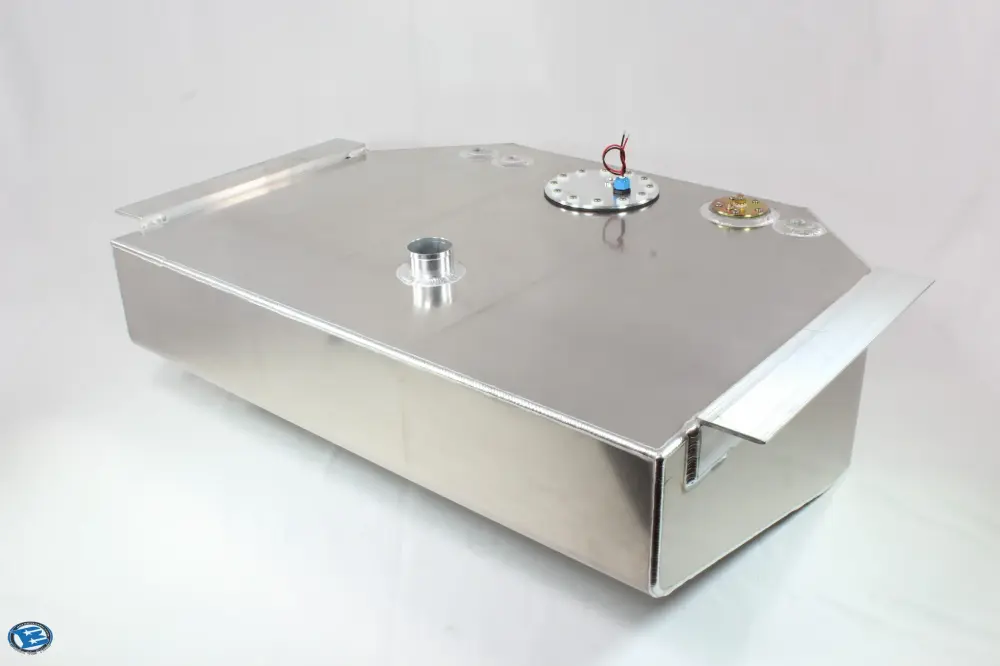

APPROX Gallons = 22
Tank Material = .125″ 5052 Aluminum
Tank Dimensions = 31.5″ x 24″ x 10″ Taper to 6″
Tank Fill = 2″ OD Ribbed For Hose (RFH) Barb Only
Tank Vent = x2 1/2″ NPT
Tank Return = 3/8″ NPT
Fuel Sensor Flange = YES
Baffles = YES x3
Mounting Tabs = YES
This Tank includes our 41001 In-tank EFI Assembly with Aeromotive 340 pump. the pump fitting on the plate is threaded for a -6 ORB fitting (9/16-18 O-Ring).
Each tank is intended to mount to the bottom of the frame rail. It is not necessary to remove the “X” Shape rear cross member as the tank will sit below it. The mounting tabs will require drilling and trimming to clearance frame rivets and bed mounting holes.
If you have removed that cross member when adding 4 link coil over or airbag kits, it is possible to mount the tank to the top of the frame rail. Additional fabrication to the bed floor will be required and it will be prerequisite that you place appropriate frame
