67-72 Ford F100 Rear Mount Tank Bed Fill W Flange ✔ Satisfaction guaranteed or your money back ✔ No Risk – Full Refund Policy 🛒 Free Shipping No Minimum

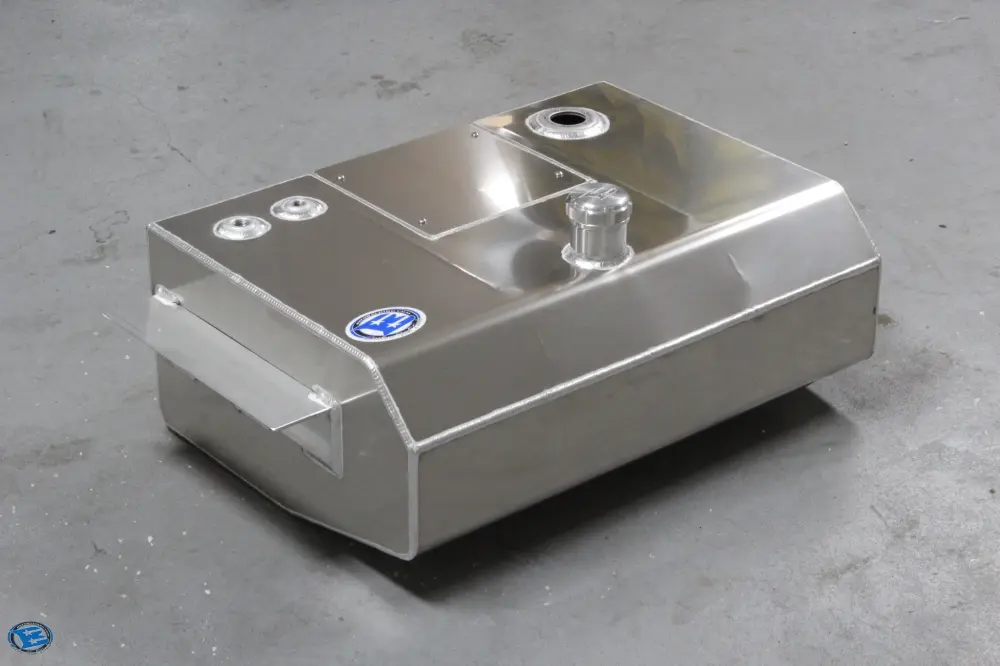

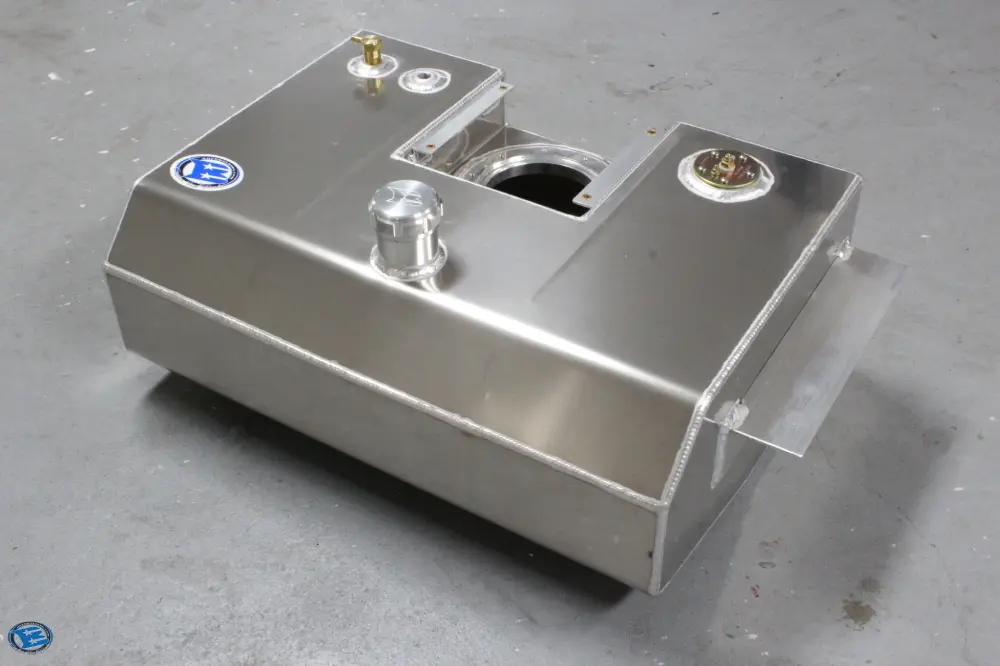

* Pictures show Rollover Safety Vent and Sending Unit Options installed.
SEE BANNER FOR CURRENT LEAD TIMES
****IF ADAPTING TO A STOCK FRAME, ADDED NOTCHING TO THE LOWER LEG OF FRAME CROSS MEMBER WILL BE REQUIRED FOR FITMENT.*****
-Tank Dimensions: 26.5 x 19 x 10
– Tank Material: .125 Aluminum

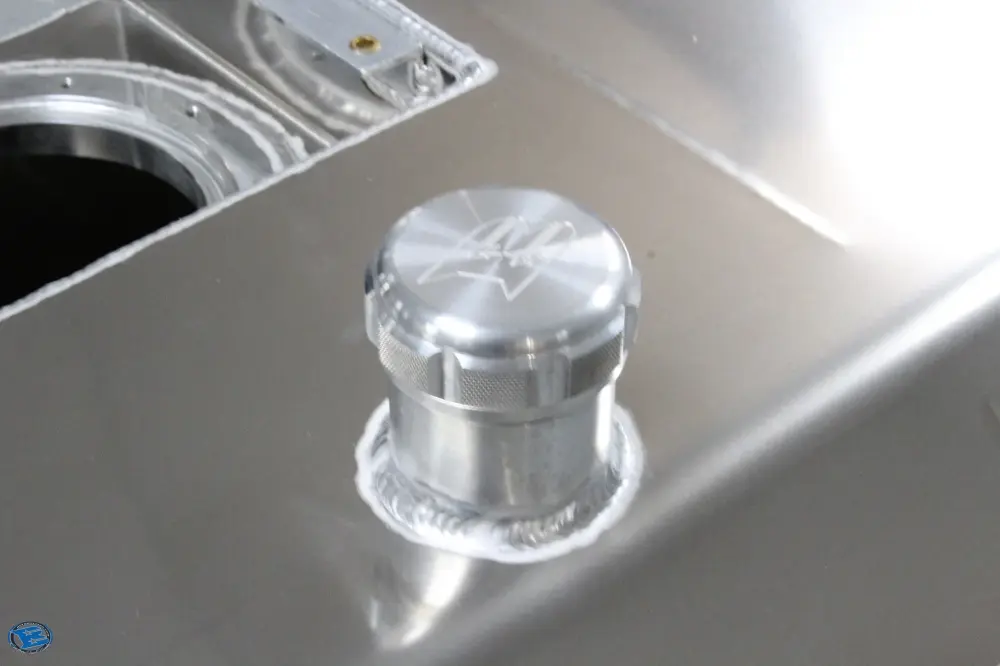

– CNC Machined Non Vented / Threaded Cap. on center

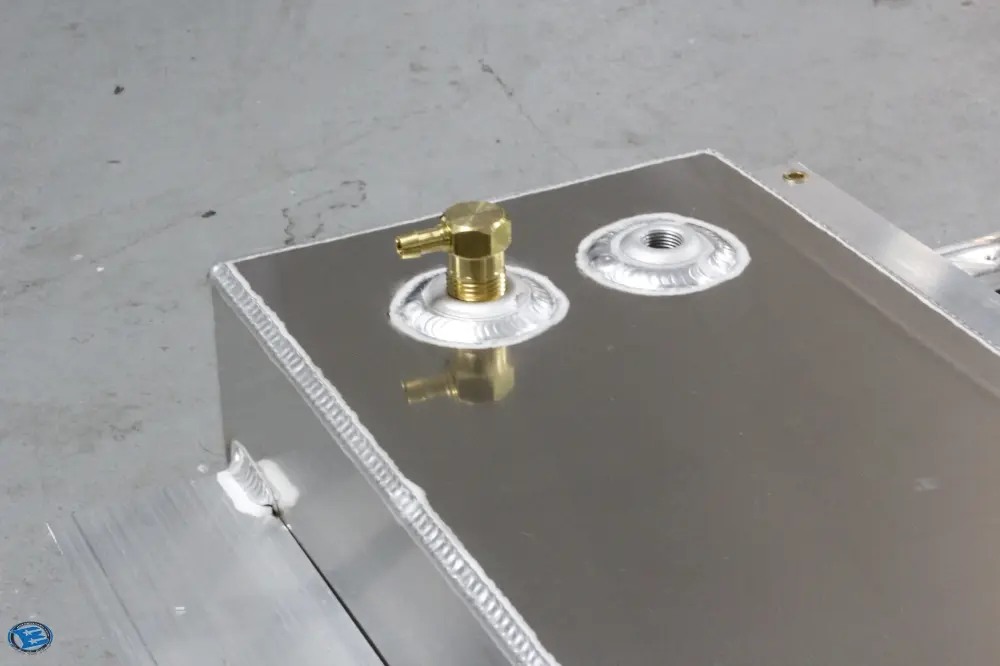

– 1/2″ NPT Vent
– 3/8″ NPT Return
– 3 Baffles
-Approx 19 Gallons
– This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly. (NOT INCLUDED) this pump has proven to be very reliable with many basic LS swap builds and some fuel injected ford applications
– It is not possible to use the OEM fuel level sensor that is supplied with the pump module. since the tank height is different from stock and is one-of-a-kind built into a pocket the sensor float will hit baffling and will not read the fuel level properly.
Note:
