63-72 C10 Rear Affix Tank W Flange for OEM MU2101 Pump

63-72 C10 Rear Mount Tank W Flange for OEM Pump
☑ 5-Year Warranty on All Products
☑ Trusted Brand – 10K+ Reviews
⇒ Trusted by 5,000+ Users

WILL FIT YEARS 63-72 C10 Tank without any modifications to the frame or bed floor when mounted to the bottom.

Years 63-66 K10 & possibly Other year K10’s it may be required to modify or move the rear crossmember

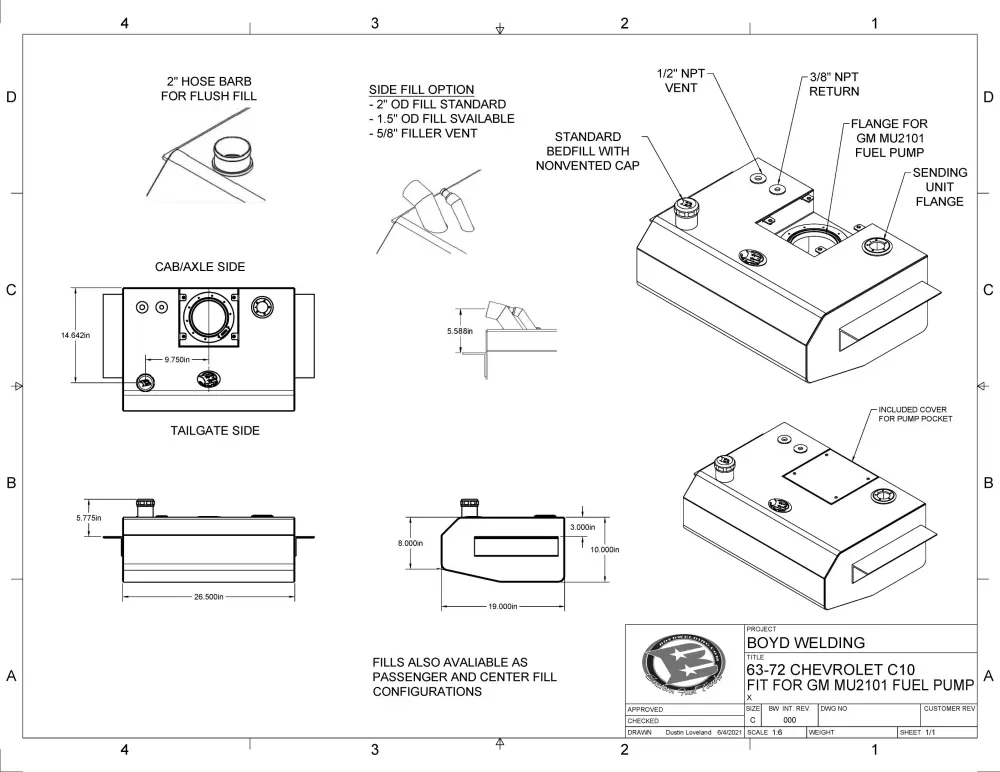

-Tank Dimensions: 26.5 x 19 x 10
– Tank Material: .125 Aluminum
– CNC Machined Non Vented / Threaded Cap or side fill depending on options chosen
– 1/2″ NPT Vent
– 3/8″ NPT Return
– 3 Baffles

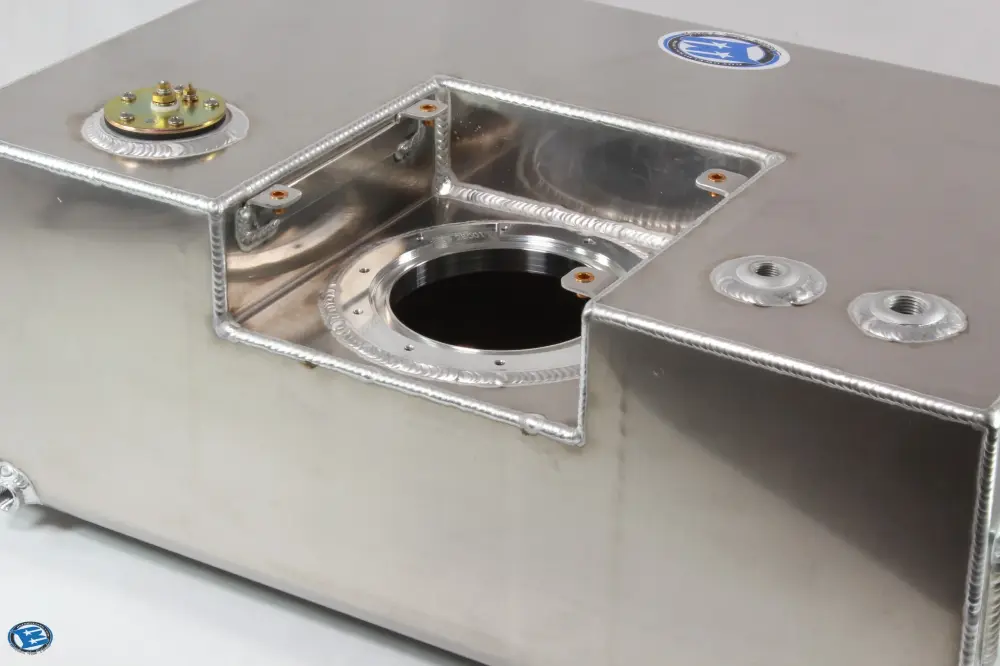

– This tank has a special pocket with adapter that will accept an OEM ACDelco MU2101 In-tank pump assembly. (NOT INCLUDED) this pump has proven to be very reliable with many basic LS swap builds.

Note: This tank will ONLY work with the MU2101 pump assembly.

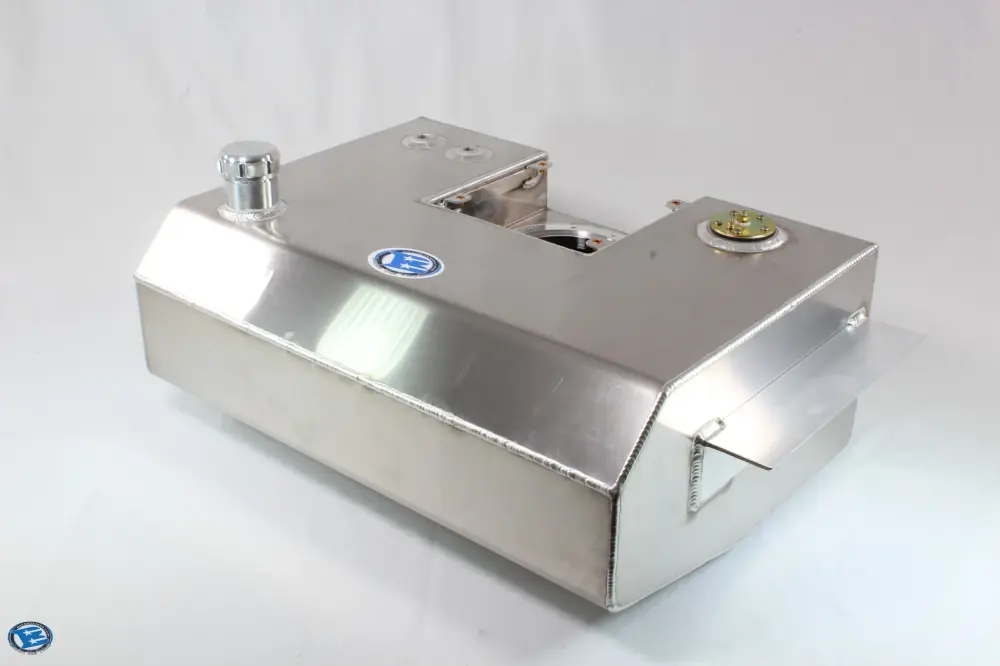

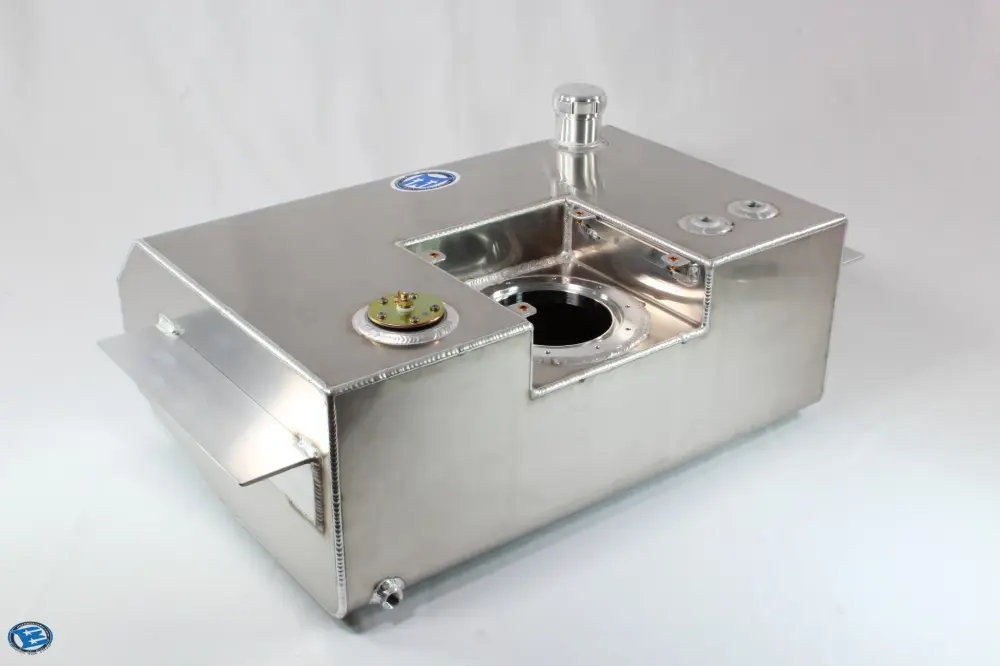

* Pictures show Rollover Safety Vent and Sending Unit Options installed.

– It is not possible to operate the OEM fuel level sensor that is supplied with the pump module. since the tank height is different from stock and is customized built into a pocket the
